GROMMETS(FLAME RETARDANCY)

DB・DULB

•
•
•
• [Description of mark]

Feature

● Weather-resistant, heat-resistant, ozone-resistant, aging-resistant and electrical properties are excellent synthetic rubber.
● Due to the use of approved material(DULB/Flame retardant material UL94 V-0), It is excellent in self-extinguishing and non-pollution, flame retardancy.

Material

● DB / EPDM (Ethylene propylene rubber)
● DULB / CR (Chloroprene rubber)

Application Specific Use

● Protect the cable from the edge of the circular hole was drilled in the panel.

Hardness

● 50°±5°

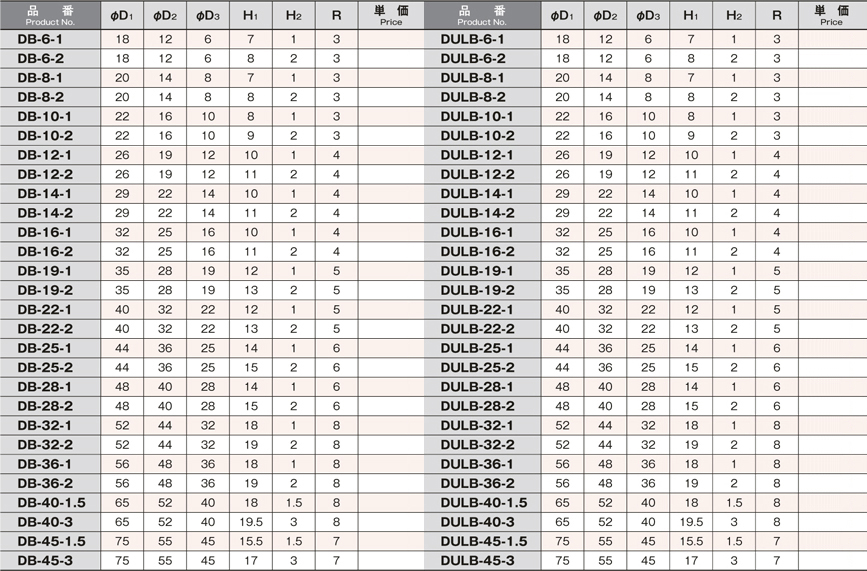

DB-10-1	DB-10-2	DB-12-1
DB-12-2	DB-14-1	DB-14-2
DB-16-1	DB-16-2	DB-19-1
DB-19-2	DB-22-1	DB-22-2
DB-25-1	DB-25-2	DB-28-1
DB-28-2	DB-32-1	DB-32-2
DB-36-1	DB-36-2	DB-40-1.5
DB-40-3	DB-45-1.5	DB-45-3
DB-6-1	DB-6-2	DB-8-1
DB-8-2	DULB-10-1	DULB-10-2
DULB-12-1	DULB-12-2	DULB-14-1
DULB-14-2	DULB-16-1	DULB-16-2
DULB-19-1	DULB-19-2	DULB-22-1
DULB-22-2	DULB-25-1	DULB-25-2
DULB-28-1	DULB-28-2	DULB-32-1
DULB-32-2	DULB-36-1	DULB-36-2
DULB-40-1.5	DULB-40-3	DULB-45-1.5
DULB-45-3	DULB-6-1	DULB-6-2
DULB-8-1	DULB-8-2
