BRACKET FOR ELECTRICAL WIRING FIXED BARS

JB-2〜4-Ｎ

•
•
• [Description of mark]

Feature

●Hexagon socket head screws are set on the bracket.
●Use a hexagon wrench (width across flats 2mm) to attach the attached set screw to prevent rotation.

Material

●Bracket/Steel(SPHC),

Finish

●Trivalent chromate plating

Application Specific Use

●Bracket for organizing and fixing wiring in the rack

Remarks

●Please note that the screws may be damaged if the attached set screws are tightened too much.
●When installing the set screw, be careful not to drop or lose it by setting it on a hexagon wrench.

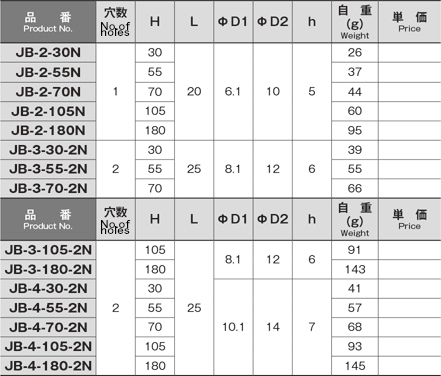

JB-2-105N	JB-2-180N	JB-2-30N
JB-2-55N	JB-2-70N	JB-3-105-2N
JB-3-180-2N	JB-3-30-2N	JB-3-55-2N
JB-3-70-2N	JB-4-105-2N	JB-4-180-2N
JB-4-30-2N	JB-4-55-2N	JB-4-70-2N
