BAND BASES

ECEX・ECMB

•
•
•
• [Description of mark]

Feature

● BAND BASE (POPULAR TYPE)
ECEX-20,-30 can be adhered extensively by using the synthetic rubber adhesive. It has a excellent adhesion to tiles, glass, polyolefin type resin which was　particularly existing problems.

● ECEX-20G,-30G has a excellent heatresistance, weather-resistance, chemical-resistance. It has a excellent adhesion to tuberosity, painted steel, ABS resin by using the Acrylic adhesive.

● ECMB TYPE (FIXED SCREW TYPE)
Installation on the panel is screwed type so it's strongly fixed. It's a miniature type so it's suitable for narrow spaces.

Material

● Nylon 66 (UL94V-2)

Standard Color

● Natural(N) / Black(B)

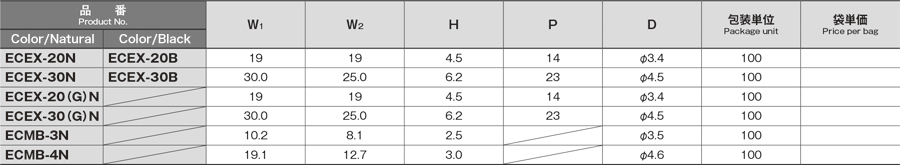

ECEX-20 (G)N	ECEX-20 B	ECEX-20 N
ECEX-30 (G)N	ECEX-30 B	ECEX-30 N
ECMB-3 N	ECMB-4 N
